Electric hydraulic lift table

HLDP500 Electric Hydraulic Lift Table | Versatile & Safe Workshop Platform

Introducing the HLDP500 Electric Hydraulic Lift Table, a reliable and efficient solution designed to elevate productivity and ergonomics in warehouses, assembly lines, and workshops. Engineered with a robust dual-scissor mechanism and powered by a smooth 12V system, this platform offers precise height adjustment up to 1.5 meters with a solid 500 kg load capacity. It serves as an ideal adjustable workbench, feeding station, or material handling aid, reducing operator strain and improving workflow efficiency.

Whether you need a standard model or a fully customized platform, the HLDP series provides a flexible foundation to match your specific operational requirements.

Product Highlights

• Strong & Stable Lifting: The dual-scissor lift mechanism ensures smooth, stable, and reliable vertical movement, even under full load, providing a secure platform for delicate or precise tasks.

• Ergonomic & Adjustable: Easily raise or lower the platform to the perfect working height between approximately 0.4m and 1.9m (platform heights vary), promoting better posture and reducing fatigue for operators.

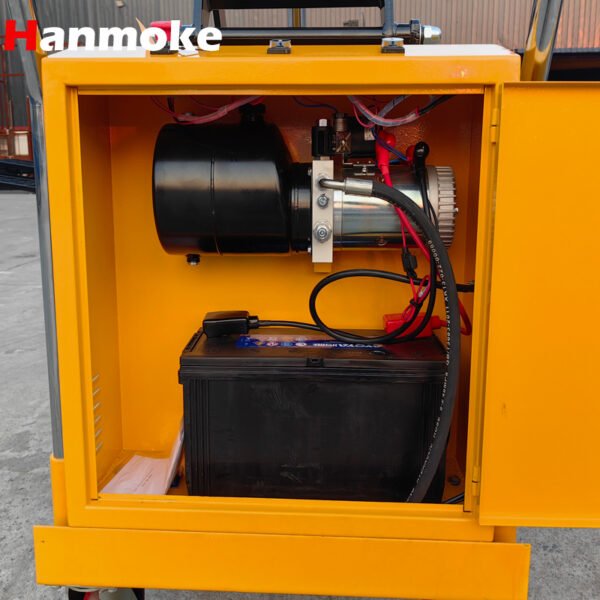

• Clean & Quiet 12V Operation: The efficient 12V DC electric-hydraulic power system allows for quiet, indoor use without fumes or the need for complex 3-phase power installation. It can be powered by a battery or a standard transformer.

• Built for Industrial Use: Constructed from high-strength steel with a durable deck surface, the HLDP500 is made to withstand the demands of daily use in workshop and logistics environments.

• Part of a Flexible Series: The HLDP500 is one model within our broader range. We offer standard specifications including capacities of 350 kg, 800 kg, and 1000 kg, with lifting heights of 1 meter, 2 meters, and more.

Technical Specifications & Features

Model: HLDP500
Load Capacity: 500 kg
Max Lifting Height: 1.5 meters (from lowered position)
Power Supply: 12V DC Electric-Hydraulic System
Lift Mechanism: Dual Scissor Arms
Standard Deck Sizes: Available in various sizes (e.g., 800mm x 800mm, 1000mm x 800mm). Fully custom sizes are available.
Controls: Simple up/down push-button control station, typically with an emergency stop button.
Safety Features: Includes mechanical safety locks to securely hold position, overload protection, and non-slip deck options.

Customization & Other Standard Models

We understand that one size does not fit all. The HLDP series is designed for adaptability.

• Choose a Standard Model: Select from our range of pre-engineered models with common capacity/height combinations to meet most needs quickly and cost-effectively.

• Customize Your Solution: We specialize in tailoring lift tables to your exact requirements. You can specify:

  • Custom Load Capacity (from light-duty to several tons)

  • Custom Lifting Height and lowered height

  • Custom Platform Size & Shape (length, width, even special cut-outs)

  • Custom Deck Surface (steel, anti-static, phenolic, etc.)

  • Additional Features (towing eyes, casters, special controls, safety gates)

Key Benefits

• Improves Ergonomics & Safety: Reduces bending and lifting, minimizing the risk of workplace injuries.

• Increases Productivity: Allows workers to maintain an efficient pace by bringing work to a comfortable height.

• Enhances Versatility: Functions as a height-adjustable worktable, a lift for feeding machinery, or a mobile staging platform (with optional casters).

• Offers Reliable Performance: The electric-hydraulic system and sturdy construction ensure long-term, low-maintenance operation.

• Provides Investment Flexibility: From standard off-the-shelf units to fully custom-engineered platforms, you invest in exactly what you need.

Ideal Applications

• Warehousing & Distribution: Order picking, packaging stations, palletizing aid.

• Manufacturing & Assembly Lines: Positioning parts for assembly, feeding CNC machines or presses.

• Workshops & Maintenance Bays: Holding tools and components at a convenient height for repair work.

• Printing & Packaging: Loading and unloading materials onto machines.

• Aerospace & Automotive: Handling sensitive or heavy components during assembly.

Why Choose the HLDP Series Lift Table?

It’s more than just a lift; it’s a strategic tool for optimizing your workspace. By investing in an HLDP lift table, you invest in the well-being of your team and the smooth flow of your operations. Our combination of standard availability and deep customisation capability ensures you get a perfect fit for your task.

Ready to elevate your workflow? Contact us today to discuss the standard HLDP500 or to request a quote for a custom-configured lifting solution tailored to your unique needs.
